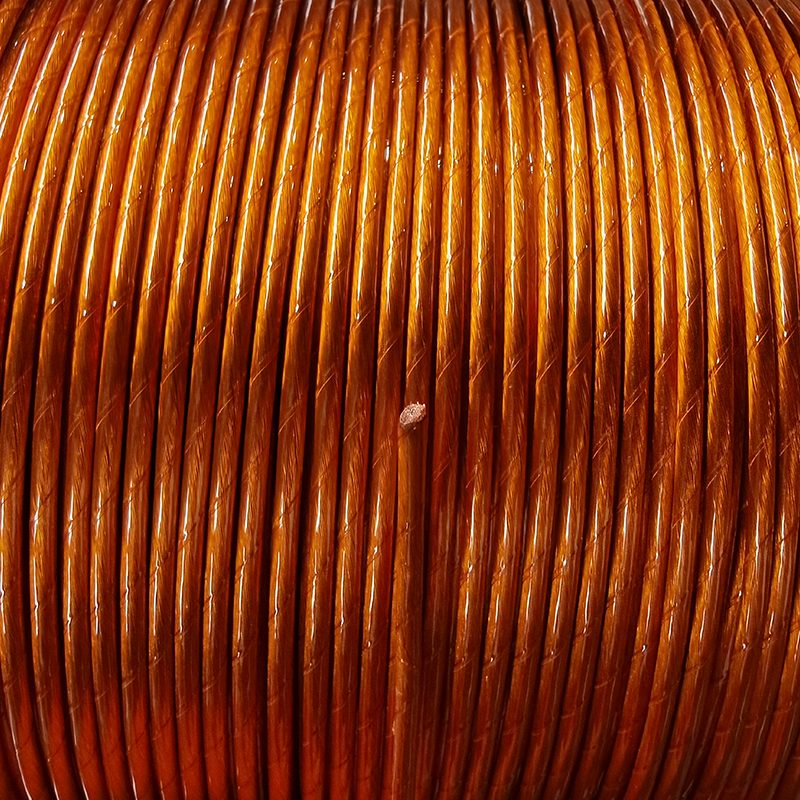

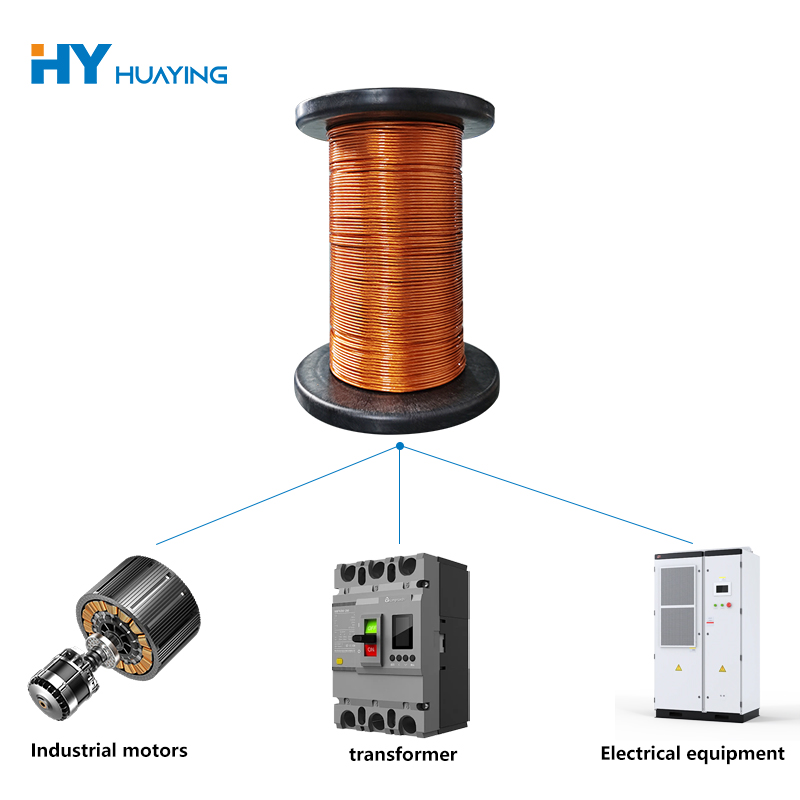

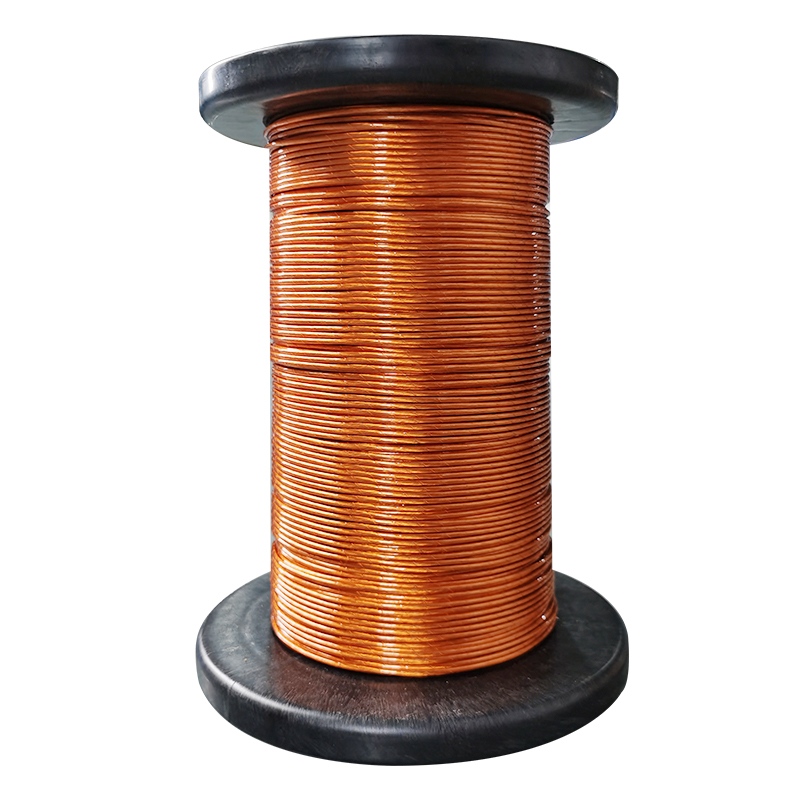

Tape-omviklet tråd
Huaying Tape-Wrapped Wire er leveret af Huizhou Huaying Electronic Technology Co., Ltd. Huaying Electronic Technology Co., Ltd. er en berømt standardsættende deltager! I årenes løb har de ikke kun overholdt internationale standarder som UL og VDE inden for deres egen industri, men har også proaktivt indgået partnerskab med Shenzhen Research Institute of Huazhong University of Science and Technology og i fællesskab udviklet adskillige tekniske patenter. Dette viser deres engagement i produktteknologi. Dette har givet dem et stærkt omdømme og tillid fra adskillige kunder.
Product Compressive Strength
Insulation is the core of insulated wire, and Huaying Tape-Wrapped Wire undergoes rigorous high-voltage testing. They apply voltages exceeding those typically used in everyday use to monitor for leakage. The results demonstrate that even under high-voltage conditions, the wire maintains excellent insulation performance and exhibits no leakage, a crucial safety feature for medical devices and high-frequency, high-voltage power conversion equipment.
Product Inspection Specifications
To ensure that every roll of Huaying Tape-Wrapped Wire meets the standards, we maintain an extremely stringent inspection protocol. For example, the appearance is carefully inspected for scratches and stains, surface smoothness, glossiness, and color uniformity, as well as any sticking. The color is the customer's specified, and even the spool is inspected for integrity. Every detail is meticulously scrutinized to ensure that no defective products reach customers.
After-Sales Service
Huaying Tape-Wrapped Wire offers exceptional after-sales service. The company provides a quality guarantee on the product's materials and workmanship. If any quality issues arise during use, simply report them to the after-sales team, who will respond promptly, analyze the problem, and resolve it without delay or evasion. Even after the warranty period, if customers encounter any problems, they can contact them and they will do their best to provide assistance, ensuring peace of mind.
| Conductor(mm) | overall diameter(mm) | tape width (mm) | Overlap rate | Packaging length (M/axis) | Conductor resistance (20℃) (Ω/km) | Beat copper bar to withstand voltage AC/KV | |||
| Conductor diameter | Allowable tolerance | minimum value | target value | Maximum | |||||
| 0.10×30 | ±0.008 | 0.704 | 0.804 | 0.904 | 6±0.2 | ≥110% | 2000 | ≤86.7 | 4 |
| 0.10×40 | ±0.008 | 0.807 | 0.907 | 1.007 | 6±0.2 | ≥110% | 1000 | ≤65 | 4 |
| 0.10×50 | ±0.008 | 0.898 | 0.998 | 1.098 | 7±0.2 | ≥110% | 1000 | ≤52.0 | 4 |
| 0.10×60 | ±0.008 | 0.98 | 1.08 | 1.18 | 7±0.2 | ≥110% | 1000 | ≤43.3 | 4 |
| 0.10×70 | ±0.008 | 1.055 | 1.155 | 1.255 | 8±0.2 | ≥110% | 1000 | ≤37.1 | 4 |
| 0.10×80 | ±0.008 | 1.13 | 1.23 | 1.33 | 8±0.2 | ≥110% | 1000 | ≤32.5 | 4 |
| 0.10×90 | ±0.008 | 1.19 | 1.29 | 1.39 | 8±0.2 | ≥110% | 800 | ≤28.9 | 4 |
| 0.10X100P | ±0.008 | 1.253 | 1.353 | 1.453 | 8±0.2 | ≥110% | 800 | ≤26.0 | 4 |
| 0.10X110P | ±0.008 | 1.312 | 1.412 | 1.512 | 8±0.2 | ≥110% | 800 | ≤23.638 | 4 |
| 0.10X120P | ±0.008 | 1.369 | 1.469 | 1.569 | 8±0.2 | ≥110% | 800 | ≤21.668 | 4 |
| 0.10X130P | ±0.008 | 1.423 | 1.523 | 1.623 | 9±0.2 | ≥110% | 800 | ≤20 | 4 |
| 0.10X140P | ±0.008 | 1.475 | 1.575 | 1.675 | 9±0.2 | ≥110% | 800 | ≤18.573 | 4 |
| 0.10X150P | ±0.008 | 1.525 | 1.625 | 1.725 | 9±0.2 | ≥110% | 800 | ≤17.335 | 4 |
